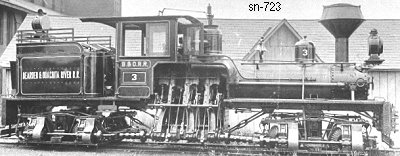

Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection (BP 7-1902)
Shop Number 723 - Built for: Cotton Belt Lbr. Co.
{666th Lima Built Shay}
Built:
7-25-1902
Class:
B
17-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 30"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
10,680 Lbs.
Factor of
Adhesion:

4.60
Maximum
Safe Speed:

10.3
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
900 Gallons
Empty Weight:
As built
39,500
Owners:
Cotton Belt Lbr. Co., Bearden & Ouachita River RR #3, Camden, AR
(10-21-1926) Stout Lbr. Co., Thornton & Alexandria RY #7, Thornton, AR
Disposition: (3-1-1929) To be Scrapped
Additional Notes: Beardon & Ouachita River R.R. on tank, B. & O. R. R. on cab
