Lima Locomotive & Machine Co.

Photo Credit:
Allen County Historical Society Museum collection (11-1902)

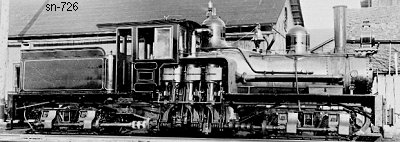

Shop Number 726 - Built for: Cameron Lbr. Co.
{668th Lima Built Shay}
Built:
11-4-1902
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
20,306 Lbs.
Factor of
Adhesion:

4.93
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
79,500
Owners:
Cameron Lbr. Co. #1, Cameron, PA
Flint, Erving & Stoner Lbr. Co. #1, Dunlevie, WV
(12-18-1910) Thornwood Lbr. Co. #1, Dunlevie, WV
(1911) Thornwood Lbr. Co. #1, Thornwood, WV (town name changed)
(11-16-1913) Thorny Creek Lbr. Co. #1, Thornwood, WV
(11-16-1913) Leased to: Kendall Lbr. Co. #1, Thornwood, WV
(4-18-1918) Mountain Lick Lbr. Co. #2, Olive, WV
General Equip. Co. (D), Altavista, VA
Nora Coal Co., Nora, VA
(2-22-1926) Wakenva Coal Corp., Swords Creek, VA
Amalgamated Coal Corp., Swords Creek, VA
(9-1930) Swords Creek Mining Corp., Swords Creek, VA,
Disposition: Scrapped at Swords Creek
Additional Notes:
