Lima Locomotive & Machine Co.

Photo Credit:
Walter Casler collection

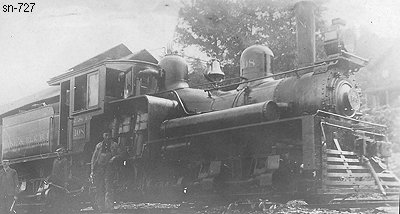

Shop Number 727 - Built for: Kane & Elk RR
{669th Lima Built Shay}
Built:
3-8-1903
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.90
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
79,000
Owners:
Kane & Elk RR Co., Kane & Elk RR #108, Kane, PA
Disposition: Scrapped
Additional Notes:
