Lima Locomotive & Machine Co.

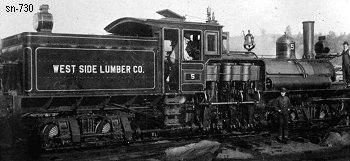

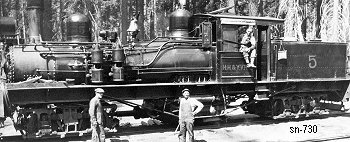

Photo Credit:
Left: Bob Berio collection - Right: Mallory Hope Ferrall collection

Shop Number 730	-	Built for: West Side Flume & Lbr. Co.
{672nd Lima Built Shay}

Built: 9-16-1902	Class: B 50-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 12 x 12
Gear Ratio: 2.21	Wheel Dia.: 32"	Gauge: 36"	Boiler: [Style - Dia.] W.T. - 46"
Boiler Pressure: In Lbs. (PSI) 180	Tractive Effort: 24,166 Lbs.	Factor of Adhesion: 4.38	Maximum Safe Speed: 17.2
Fuel Type: Oil	Fuel Capacity: 1,000 Galllons	Water Capacity: 2,000 Gallons	Empty Weight: As built 85,000
Owners: West Side Flume & Lbr. Co. #5, Tuolumne, CA (1903) West Side Lbr. Co., Hetch Hetchy & Yosemite Valley RR #5, Tuolumne, CA (3-4-1925) Pickering Lbr. Co. #5, Tuolumne, CA (7-1934) West Side Lbr. Co. #5, Tuolumne, CA
Disposition: (9-1950) Scrapped
Additional Notes: Ordered by West Side Flume & Lbr. Company which became West Side Lbr. Co. about the time the Shay arrived.
