Lima Locomotive & Machine Co.

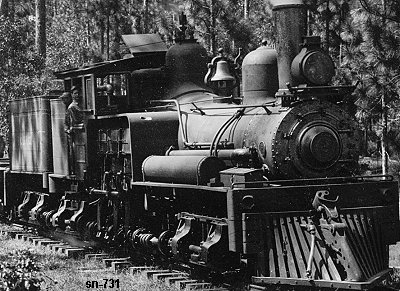

Photo Credit:
Library of Congress (c1915)
Shop Number 731 - Built for: Big Creek Lbr. Co.
{673rd Lima Built Shay}
Built:
10-3-1902
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.259
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
27,655 Lbs.
 Factor of
Adhesion:
4.94
 Maximum
Safe Speed:
14.1
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
107,000
Owners:
Big Creek Lbr. Co., Big Creek RR #2, Pollock, LA
(1913) Pine Belt Lbr. Co. #6, Fort Towson, OK
(1-1-1923) Texarkana Gravel Co. #6, Texarkana, TX
Disposition: (10-6-1925) Scrapped
Additional Notes: Converted to wood burner
