Lima Locomotive & Machine Co.
Photo Credit:

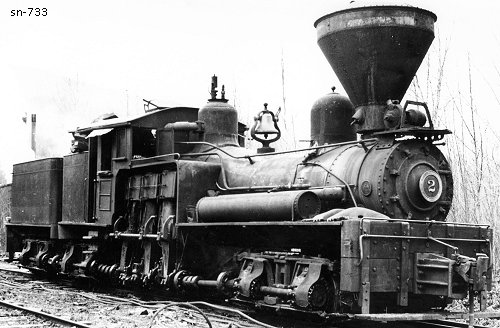

Top: by Albert Farrow (2-22-1938) from John T. Taubeneck

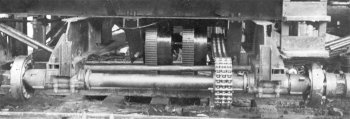

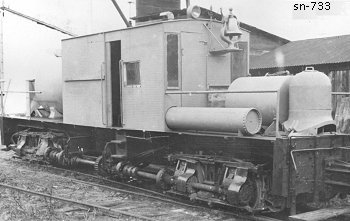

Bottom-both as rebuilt: by Ted E. Satra
Shop Number 733 - Built for: Hulburt Lbr. Co.
{675th Lima Built Shay}
Built:
3-25-1903
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std
Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
24,166 Lbs.
 Factor of
Adhesion:
5.74
Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
108,400
Owners:
W. D. Hofius & Co. (D), Seattle, WA
Hulburt Lbr. Co. #2, Seattle, WA
(11-23-1922) Everett Log. Co. #2, Tulalip, WA
(2-6-1926) Hofius Steel & Equip. Co. (D), Seattle, WA *
(11-18-1926) Wood-Knight Log.Co. #2, Blue Canyon, WA
(6-22-1927) Wrecked; (11-10-1928) Repairs completed
(6-1-1937) Wood-Acme Log. Co. #2, Acme, WA
(6-6-1942) Marona Mill Co. #2, Acme, WA
(c1947) Rebuilt to a 2-truck diesel-hydraulic loco at Acme to use as a yard switcher #2.
Disposition: Scrapped
Additional Notes: * Owned by Dealer
