Lima Locomotive & Machine Co.

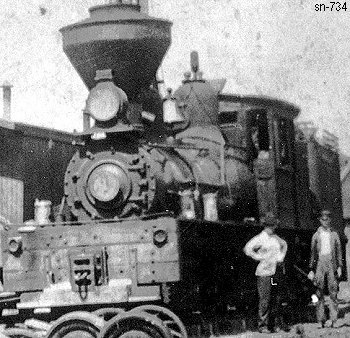

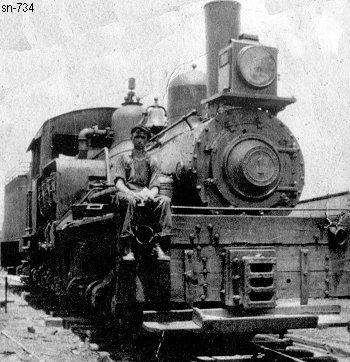

Photo Credit:
Left: Phillip Kotheimer collection - Right: J. R. Phillips collection
Shop Number 734 - Built for: M. L. Davis
{676th Lima Built Shay}
Built:
10-29-1902
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.529
Wheel Dia.:
29.5"
Gauge:
36"
 Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
29,998 Lbs.
 Factor of
Adhesion:
4.23
 Maximum
Safe Speed:
13.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
96,700
Owners:
M. L. Davis, Oak Grove & Georgetown RR #1, Oak Grove, AL
Disposition: Scrapped
Additional Notes: Converted to wood burner
