Lima Locomotive & Machine Co.

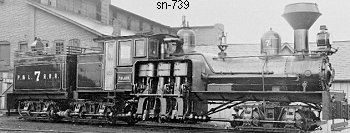

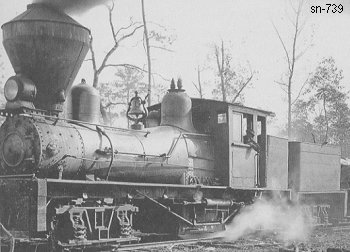

Photo Credit:
Left: S. E. Moreton, Jr. collection
Right: Allen County Historical Society Museum collection (BP 11-1902)
Shop Number 739 - Built for: J. J. Newman Lbr. Co.
{681st Lima Built Shay}
Built:
11-7-1902
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
24,166 Lbs.
 Factor of
Adhesion:
5.44
Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
101,300
Owners:
J. J. Newman Lbr. Co., Pearl & Leaf River RR #7 (1st) later #3 (2nd), Sumrall, MS
Disposition: (1938) Scrapped
Additional Notes: (3-23-1923) new boiler
