Lima Locomotive & Machine Co.

Photo Credit:
Allen County Historical Society Museum collection (BP 11-1902)

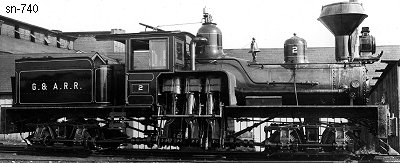

Shop Number 740 - Built for: Raine-Andrews Lbr. Co.
{682nd Lima Built Shay}
Built:
11-1-1902
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

4.62
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
61,200
Owners:
Raine-Andrews Lbr. Co., Glady & Alpena RR #2, Evenwood, WV
Leased to: Marlin Lbr. Co., Marlinton, WV
(8-1923) Intermountain Coal & Lbr. Co. #1, Putney, KY
(6-11-1926) Wrecked
Disposition: (2-7-1930) Scrapped
Additional Notes:
