Lima Locomotive & Machine Co.

Photo Credit:
Allen County Historical Society Museum collection (BP 10-1902)

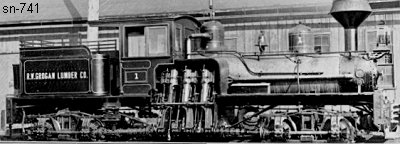

Shop Number 741	-	Built for: R. W. Grogan Lbr. Co.
{683rd Lima Built Shay}

Built: 10-25-1902	Class: B 25-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 8 x 12
Gear Ratio: 3.071	Wheel Dia.: 26.5"	Gauge: std.	Boiler: [Style - Dia.] W.T. - 36"
Boiler Pressure: In Lbs. (PSI) 160	Tractive Effort: 16,015 Lbs.	Factor of Adhesion: 3.74	Maximum Safe Speed: 10.3
Fuel Type: Coal	Fuel Capacity: 1.75 Tons	Water Capacity: 1,000 Gallons	Empty Weight: As built 47,400
Owners: R. W. Grogan Lbr. Co. #1, Harleton, TX Lodwick Lbr. Co., Lodwick, TX Birmingham Rail & Loco. Co. (D), Birmingham, AL (8-1909) Garrison & Norton Lbr. Co., Pineland, TX (1-31-1919) Bivins Lbr. Co. #2, Ashland, TX (3-26-1920) Bivins Lbr. Co. #2, James, TX (3-2-1922) Ashley Lbr. Co. #2, Snyder, AR (10-27-1926) Not in service
Disposition: (1926) Scrapped
Additional Notes:
