Lima Locomotive & Machine Co.

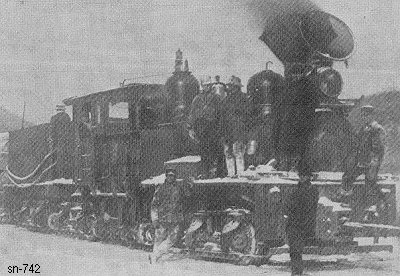

Photo Credit:
Henry C. Hutton collection
Shop Number 742 - Built for: W. S. Tolbard
{684th Lima Built Shay}
Built:
11-18-1902
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
24,166 Lbs.
Factor of
Adhesion:

5.41
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
100,500
Owners:
W. S. Tolbard #1. Mill Creek, WV
Tolbard & Spiker #1, Mill Creek, WV
Tygarts River Lbr. Co., Mill Creek & Addison RR #1, Mill Creek, WV
Parsons Pulp & Lbr. Co. #11, Horton, WV
(10-10-1919) Whitmer-Parsons Pulp & Lbr. Co. #11, Horton, WV
(3-1927) Spears Lbr. Co. #11, Horton, WV
(7-27-1927) Keystone Mfg. Co. #11, Erwin, WV
Disposition: Scrapped
Additional Notes:
