Lima Locomotive & Machine Co.

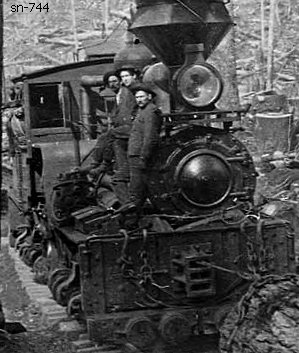

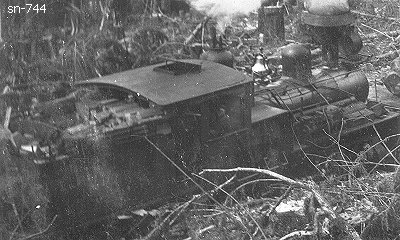

Photo Credit:
Top: Marc Reusser collection
Right: by unknown
Shop Number 744 - Built for: Weeks & Co.
{686th Lima Built Shay}
Built:
10-15-1902
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.93
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood & Coal
 Fuel Capacity:
2 Cords / 3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
79,483
Owners:
Weeks & Co., North Bend, WA
North Bend Lbr. Co. #4, Edgewick, WA
(1923) North Bend Tbr. Co. #1 (1st), Edgewick, WA
Disposition: (2-1-1937) Scrapped
Additional Notes:
