Lima Locomotive & Machine Co.

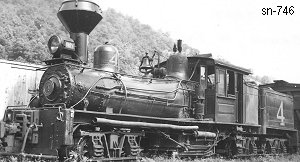

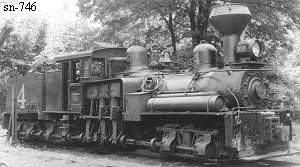

Photo Credit:
Left: John Henderson collection - Right: Donald R. Hensley, Jr. collection
Shop Number 746 - Built for: Cherry River Boom & Lbr. Co.
{388th Lima Built Shay}
Built:
12-2-1902
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
24,166 Lbs.
Factor of
Adhesion:

5.41
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
100,500
Owners:
Cherry River Boom & Lbr. Co. #4, Richwood, WV
Rowlesburg & Southern RR #4, Rowlesburg, WV
Disposition: (1950) Scrapped
Additional Notes:
