Lima Locomotive & Machine Co.

Photo Credit:
Florala Public Library.

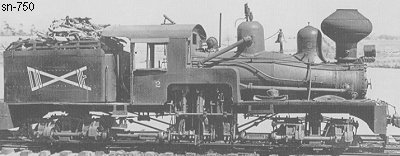

Shop Number 750 - Built for: Jackson Lbr. Co.
{692nd Lima Built Shay}
Built:
12-26-1902
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.85
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
 Fuel Capacity:
2 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
65,900
Owners:
Jackson Lbr. Co., Dixie Route RR, #2, Lockhart, AL
(1941) J. A. Jones Construction Co. #2, Brunswick, GA
(6-11-1942) Daniel Construction Co. Inc. #2, Brunswick, GA
Disposition: Scrapped
Additional Notes: new boiler3-24-1926
Converted to coal burner
