Lima Locomotive & Machine Co.

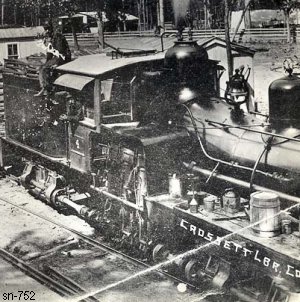

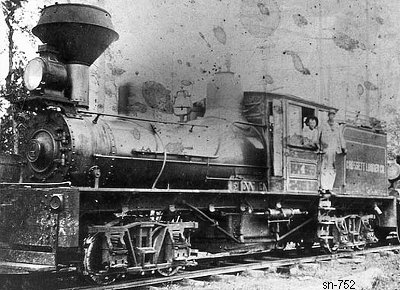

Photo Credit:
Both: Marc Reusser collection
Shop Number 752 - Built for: Crossett Lbr. Co.
{694th Lima Built Shay}
Built:
3-1-1903
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

4.75
Maximum
Safe Speed:

17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
64,000
Owners:
Crossett Lbr. Co., Ashley, Drew & Northern RY #4 later #7, Crossett, AR
(1928) For sale
Disposition: Scrapped
Additional Notes: #7 by 7-2-1921
