Lima Locomotive & Machine Co.

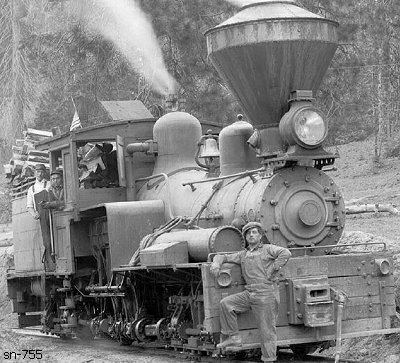

Photo Credit:
Left: by unknownl
Right: Harry Pidgeon collection
Shop Number 755 - Built for: Madera Sugar Pine Co.
{697th Lima Built Shay}
Built:
12-27-1902
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
36"
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

4.64
Maximum
Safe Speed:

17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
64,000
Owners:

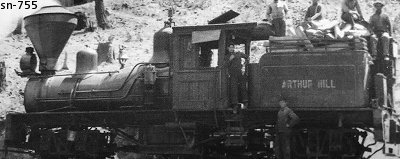

Madera Sugar Pine Co. "ARTHUR HILL" later #2, Madera, CA

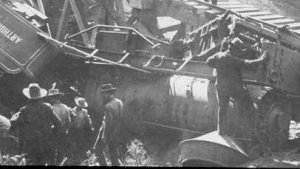

(1916) Wrecked and repaired
Disposition: (1937) Scrapped
Additional Notes: #2 by 1-19-1921
by Claude C. Laval
