Lima Locomotive & Machine Co.

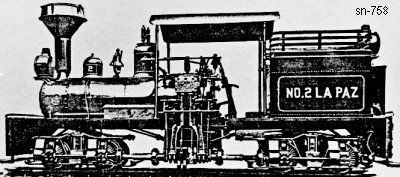

Photo Credit:
George R. Kadelak collection
Shop Number 758 - Built for: Sr. Octaviano B. Cabrera
{700th Lima Built Shay}
Built:
9-30-1902
Class:
A
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
2.500
Wheel Dia.:
21"
Gauge:
23.6875"
[60 cm]
 Boiler:
[Style - Dia.]
ST. - 28"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
4,602 Lbs.
 Factor of
Adhesion:
5.50
 Maximum
Safe Speed:
10.5
Fuel Type:
Wood
Fuel Capacity:
0.33 Cord
Water Capacity:
500 Gallons
Empty Weight:
As built
21,050
Owners:
Sr. Octaviano B. Cabrera #2 "LA PAZ", San Luis de la Paz, SLP, Mexico
Disposition: Scrapped
Additional Notes: 1 of only 4 "Left-handed Shays" built, all for this owner. The 4 Shays had the cylinders mounted on the left side of the frame.
