Lima Locomotive & Machine Co.

Photo Credit:
Thomas T. Taber collection

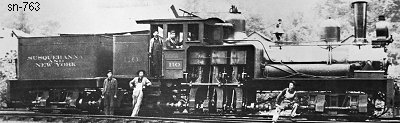

Shop Number 763 - Built for: Leetonia RY Co. (cancelled)
{705th Lima Built Shay}
Built:
4-8-1903
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
24,166 Lbs.
Factor of
Adhesion:

5.74
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
108,400
Owners:
(4-8-1903) Susquehanna and New York RR (United States Leather Co.) #110, Towanda, PA
(1913) Central Pennsylvania Lbr. Co. #64, Costello, PA
(2-18-1920) Central Pennsylvania Lbr. Co. #64, Kinzua, PA
Disposition: (after 1928) Scrapped
Additional Notes:
(c1916) Wheels and axles of 763 transferred to 1754
