Lima Locomotive & Machine Co.

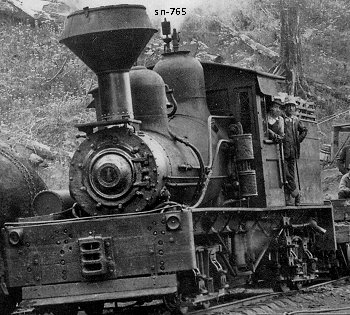

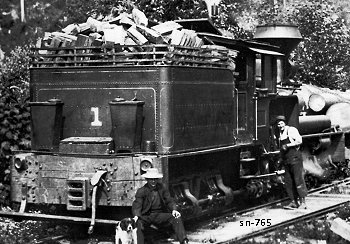

Photo Credit:
Both: from John Labbe collection
Shop Number 765 - Built for: North Bend Mills
{707th Lima Built Shay}
Built:
4-11-1903
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.49
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
61,200
Owners:
W. D. Hofius & Co. (D), Seattle, WA
North Bend Mills, Blue Ridge RY #1, North Bend, OR
Simpson Lbr. Co. #1, Empire, OR
(1916) Buehner Lbr. Co. #1, Allegany, OR
(4-1-1924) The Stout Lbr. Co. of Oregon #1, North Bend, OR
(10-7-1925) Zimmerman, Wells & Brown Co. (D), Portland, OR
(10-10-1928) Forcia & Larsen #1, Noti, OR
Snellstrom Brothers #1, Vaughn, OR
Globe Lbr. Co., Globe, OR, (Boiler only)
Disposition: Scrapped
Additional Notes:
