Lima Locomotive & Machine Co.

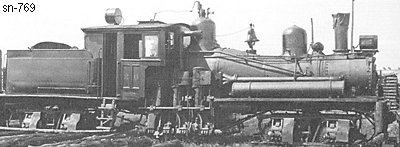

Photo Credit:
Pederson's Photo Studio - Frank King collection
Shop Number 769 - Built for: Minnesota Land & Construction Co.
{711th Lima Built Shay}
Built:
2-13-1903
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
5.04
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
81,650
Owners:
Minnesota Land & Construction Co., Duluth, Virginia & Rainy Lake RY #20, Virginia, MN
(5-1-1905) Virginia & Rainy Lake Co. Duluth, Virginia and Rainy Lake RY #20, Virginia, MN
(12-18-1905) Virginia & Rainy Lake Co. #20, Clear Lake, MN
(1912) Virginia & Rainy Lake Co. #20, Cusson, MN
(10-9-1929) Company closed down
Disposition: (c1930) Scrapped
Additional Notes:
