Lima Locomotive & Machine Co.

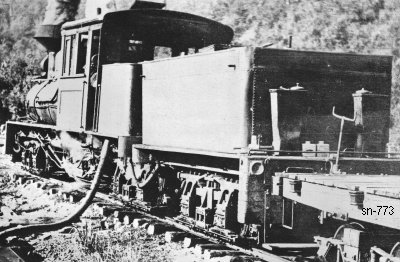

Photo Credit:
Robert Baker collection
Shop Number 773 - Built for: C. B. Howard & Co.
{715th Lima Built Shay}
Built:
9-2-1903
Class:
C
75-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 12
Gear Ratio:
2.056
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 48"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
29,093 Lbs.
Factor of
Adhesion:

5.61
Maximum
Safe Speed:

20.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
131,000
Owners:
C. B. Howard & Co., Emporium & Rich Valley RR #4 "OLD JOE", Emporium, PA
(1913) Aetna Powder Co., Emporium, PA
(1916) Emporium Iron Works (D), Emporium, PA *
(1-16-1919) Samish Bay Log. Co. #4, Blanchard, WA
(5-3-1922) For sale; too heavy for tracks
(4-1-1923) Bloedel Donovan Lbr. Mills #2 (1st), Alger, WA
Clear Lake Lbr. Co. #2 (2nd), Clear Lake, WA
(6-1928) Montborne Lbr. Co. #4, Montborne, WA
Disposition: Scrapped
Additional Notes: C. B. Howard moved from PA starting under Samish Bay Lbr. in WA
(7-18-1928) Will not do the work, to be returned to Seattle and another to be ordered.
* Owned by Dealer
