Lima Locomotive & Machine Co.

Photo Credit:
Allen County Historical Society Museum collection (BP 1-1903)

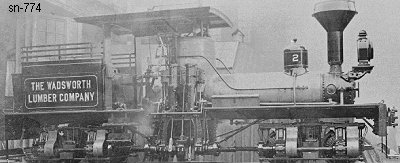

Shop Number 774 - Built for: The Wadsworth Lbr. Co.
{716th Lima Built Shay}
Built:
1-15-1903
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
Boot - 36"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
5,536 Lbs.
 Factor of
Adhesion:
5.64
 Maximum
Safe Speed:
14.2
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
690 Gallons
Empty Weight:
As built
26,300
Owners:
The Wadsworth Lbr. Co. #2, Wadsworth, AL
(5-1907) Parsons Lbr. Co. #2, Rushton, AL
Disposition: Scrapped
Additional Notes:
