Lima Locomotive & Machine Co.

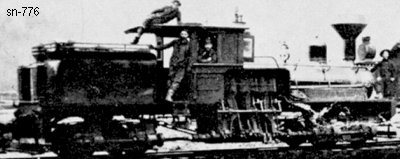

Photo Credit:
E. W. Anderson collection from George R. Kadelak
Shop Number 776 - Built for: Benson Log. & Lumbering Co.
{718th Lima Built Shay}
Built:
12-24-1903
Class:
B
33-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
14,826 Lbs.
Factor of
Adhesion:

4.70
Maximum
Safe Speed:

16.3
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
57,000
Owners:
W. D. Hofius & Co. (D), Seattle, WA
Benson Log. & Lumbering Co., Clatskanie & Nehalem RR #776, Clatskanie, OR
(6-1911) Benson Tbr. Co. #776, Clatskanie, OR
(by 7-2-1920) H. H. Martin Lbr. Co. #1, Centralia, WA
(3-2-1925) Eastern RY & Lbr. Co. #2 (1st), Centralia, WA
(by 2-8-1927) Western Crossarm & Mfg. Co. #1, Centralia, WA
Disposition: Scrapped
Additional Notes:
