Lima Locomotive & Machine Co.

Photo Credit:
by unknown

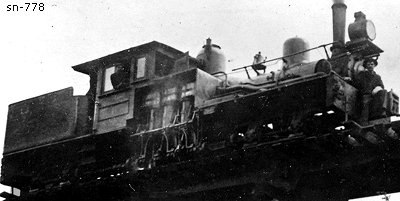

Shop Number 778 - Built for: Mitchell Brothers
{720th Lima Built Shay}
Built:
6-24-1903
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
36"
 Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.68
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
63,000
Owners:
Mitchell Brothers, Jennings & Northeastern RR #6, Jennings, MI
(by 1916) [Std.] W. M. Ritter Lbr. Co. #4, Fremont, VA
W. M. Ritter Lbr. Co., Winding Gulf RR #4, Maben, WV
Disposition: (4-17-1946) Scrapped
Additional Notes:
