Lima Locomotive & Machine Co.

Photo Credit:

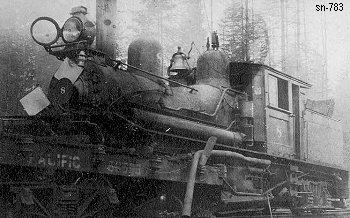

Left : Martin E. Hansen collection (1903)

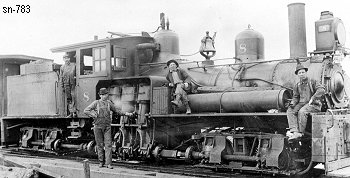

Right : Jack Holst collection (c1915)
Shop Number 783 - Built for: * Washington RY & Navigation Co.
{725th Lima Built Shay}
Built:
10-16-1903
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
20,316 Lbs.
Factor of
Adhesion:
4.79
Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
03.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
77,500
Owners: (Includes new data after 2018 Shay book completed)
W. D. Hofius & Co. (D), Seattle, WA
Washington RY & Navigation Co., #100, Yacolt, WA
(10-19-1903) Northern Pacific RY, #1098 later #8, Yacolt, WA (1)
(10-2-1912) Eastern RY & Lbr. Co. #8 (1st), Centralia, WA
(9-18-1922) Apex Tbr.r Co. #8, Pe Ell, WA
Mackie-Barnes Log. Co. (Markham Shingle), Markham, WA
(by 8-29-1924) For Sale
O. W. Brown Locomotive & Supply Co. (D), Seattle, WA *
Disposition: Scrapped
Additional Notes: Mackie-Barnes Log. Co. became M-B Log. by 1929
(1) Northern Pacific RY used Twin Falls track, Yacolt to Camp-5
* Ordered by Washington RY & Navigation Co. who was taken over by Northern Pacific RY before delivery
* Owned by Dealer
