Lima Locomotive & Machine Co.

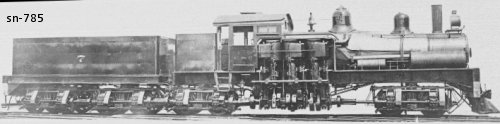

Photo Credit:
University of Michigan Engineering & Transportation Library (BP 12-1903)
Shop Number 785 - Built for: Chesapeake & Ohio RY
{727th Lima Built Shay}
Built:
12-3-1903
Class:
D
150-4
Trucks:
4
Cylinders:
[#-Dia. x Stroke]
3 - 17 x 18
Gear Ratio:
2.05
Wheel Dia.:
46"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 62"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
52,161 Lbs.
Factor of
Adhesion:

5.57
Maximum
Safe Speed:

26.7
Fuel Type:
Coal
Fuel Capacity:
9 Tons
Water Capacity:
8,000 Gallons
Empty Weight:
As built
220,650
Owners:
Chesapeake & Ohio RY. Co. Chesapeake & Ohio RY, #7, Norfolk, VA
Chesapeake & Ohio RY Co., Thurmond, WV
(9-1923) Retired and stored
Disposition: Scrapped
Additional Notes:
