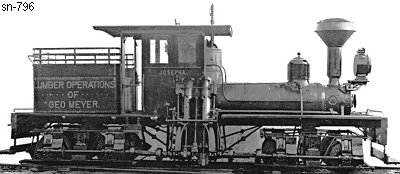

Lima Locomotive & Machine Co.

Photo Credit:
Ed Bond collection
Shop Number 796 - Built for: P. H. Starr
{738th Lima Built Shay}
Built:
7-8-1903
Class:
A
15-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]
Boot - 36"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
7,813 Lbs.
 Factor of
Adhesion:
4.38
 Maximum
Safe Speed:
10.1
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
690 Gallons
Empty Weight:
As built
29,250
Owners:
P. H. Starr #1, Olar, SC
Southern Iron & Equipment Co.(D) #738, Atlanta, GA
(1-1910) George Myer (logging contractor), Thurman, VA
Disposition: Scrapped
Additional Notes:
