Lima Locomotive & Machine Co.

Photo Credit:
Both: Marc Russer collection

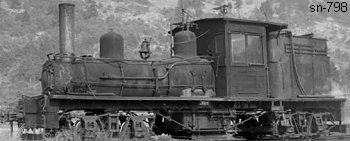

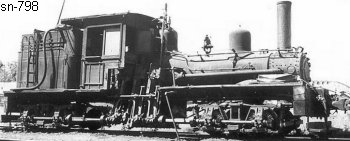

Shop Number 798 - Built for: Clark Creek Log. Co.
{740th Lima Built Shay}
Built:
4-28-1903
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
16,015 Lbs.
 Factor of
Adhesion:
3.70
 Maximum
Safe Speed:
10.3
Fuel Type:
Wood
 Fuel Capacity:
1.5 Cords
Water Capacity:
1,000 Gallons
Empty Weight:
As built
47,950
Owners:
W. D. Hofius & Co. (D), Seattle, WA
Clark Creek Log. Co. #2, Kelso, WA
(1914) W. H. Eccles Lbr. Co., Banks, OR
(1-20-1921) Lamm Lbr. Co. #1 (1st), Kirk, OR
(c1929) Lamm Lbr. Co. #2, Modoc Point, OR
(2-22-1942) Klamath Loco. & Machine Works, Inc. (D) (to scrap), Klamath Falls, OR *
Disposition: (2-1943) Scrapped
Additional Notes: Converted to oil burner
* Owned by Dealer
