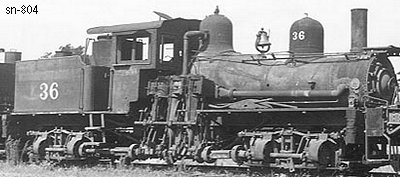

Lima Locomotive & Machine Co.

Photo Credit:
Marc Reusser collection
Shop Number 804 - Built for: Kirby Lbr. Co.
{746th Lima Built Shay}
Built:
6-12-1903
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.82
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood & Oil
 Fuel Capacity:
1.5 Cords / 600 Gallons
 Water Capacity:
1,560 Gallons
Empty Weight:
As built
67,000
Owners:
Kirby Lbr. Co. #36, Roganville, TX
Kirby Lbr. Co. #36, Bessmay, TX
Disposition: ( 12-1941) Scrapped at Silsbee, TX
Additional Notes:
