Lima Locomotive & Machine Co.

Photo Credit:
C. W. Witbeck collection

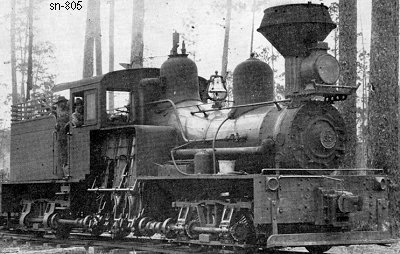

Shop Number 805 - Built for: Kirby Lbr. Co.
{747th Lima Built Shay}
Built:
7-25-1903
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.82
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood & Oil
 Fuel Capacity:
1.5 Cords / 600 Gallons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
67,000
Owners:
Kirby Lbr. Co. #37, Silsbee, TX
Kirby Lbr. Co. #37, Bronson, TX
Disposition: Scrapped
Additional Notes: (6-29-1929) Converted to oil
Sometime between 10-17-1919 and 07-05-1929, was at Steep Creek, TX
