Lima Locomotive & Machine Co.
Photo Credit:

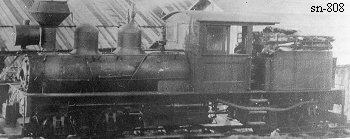

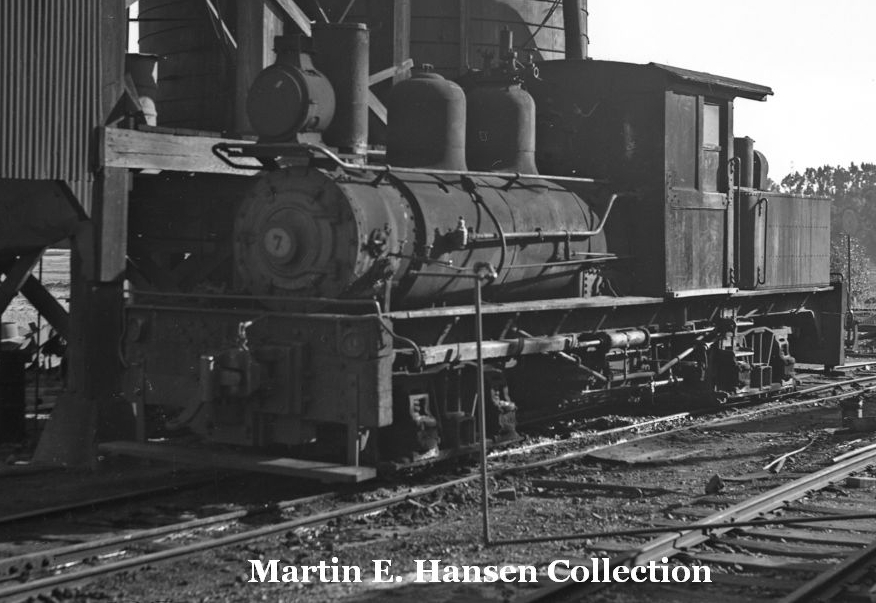

Top, Left: Martin E. Hansen collection

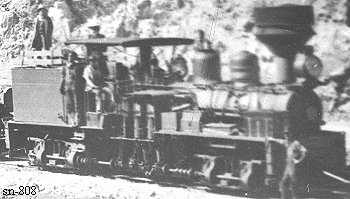

Right: Jack Holst collection (c1900)
Shop Number 808 - Built for: Maytown Lbr. Co. (cancelled)
{750th Lima Built Shay}
Built:
4-6-1904
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
28"
Gauge:
36"
Boiler:
[Style - Dia.]
ST. - 40"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
15,162 Lbs.
 Factor of
Adhesion:
4.48
 Maximum
Safe Speed:
10.9
Fuel Type:
Wood & Coal
 Fuel Capacity:
1.5 Cords / 1.75 Tons
Water Capacity:
1,165 Gallons
Empty Weight:
As built
54,750
Owners:
Brookings Lbr. & Box Co. #3, Fredalba, CA
(1912) Mountain Copper Co. Ltd. #7, Martinez, CA
Disposition: (1947) Scrapped
Additional Notes:
