Lima Locomotive & Machine Co.

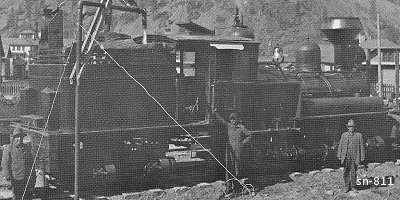

Photo Credit:
by Harry M. Dengler
Shop Number 811 - Built for: Big Blackfoot Milling Co.
{753rd Lima Built Shay}
Built:
8-24-1903
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.74
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
65,800
Owners:
Anaconda Copper Mining Co. #1, Bonner, MT; For:
Big Blackfoot Milling Co., Big Blackfoot RR #1, Bonner, MT
(1-1910) Big Blackfoot Lbr. Co. #1, Bonner, MT
(6-1910) Anaconda Copper Mining Co., Lbr. Dept., #1, Bonner, MT
Disposition: (9-24-1940) Scrapped
Additional Notes:
