Lima Locomotive & Machine Co.

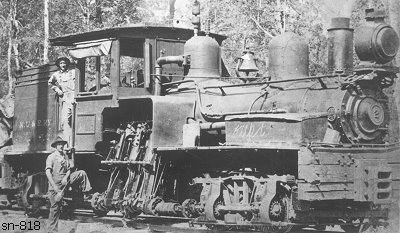

Photo Credit:
Marc Reusser collection
Shop Number 818 - Built for: Urania Lbr. Co.
{760th Lima Built Shay}
Built:
9-18-1903
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
16,015 Lbs.
 Factor of
Adhesion:
3.79
 Maximum
Safe Speed:
10.3
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,000 Gallons
Empty Weight:
As built
47,650
Owners:
Urania Lbr. Co., Natchez, Urania & Ruston RY #2, Urania, LA
(8-1-1921) The Brewer-Neinstadt Lbr. Co. #2, Miltonberg, LA
The Brewer-Neinstadt Lbr. Co., Palmetto, LA
Disposition: (5-15-1930) Scrapped
Additional Notes:
