Lima Locomotive & Machine Co.

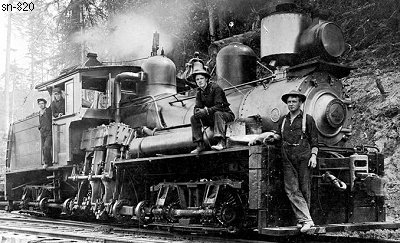

Photo Credit:
by unknown
Shop Number 820 - Built for: Chinn Brothers Tbr. Co.
{762nd Lima Built Shay}
Built:
9-5-1903
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,316 Lbs.
 Factor of
Adhesion:
4.96
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood & Coal
 Fuel Capacity:
2 Cords / 3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
80,200
Owners:
W. D. Hofius & Co. (D), Seattle, WA
Chinn Brothers Tbr. Co. #1, Maple Falls, WA
(1910) Lake Whatcom Log. Co. #4, Lake Whatcom, WA
(1913) Bloedel Donovan Lbr. Mills #4, Alger, WA
(8-14-1929) Bloedel Donovan Lbr. Mills #4, Sekiu, WA
Disposition: (1945) Scrapped
Additional Notes: (6-2-1919) new boiler
