Lima Locomotive & Machine Co.

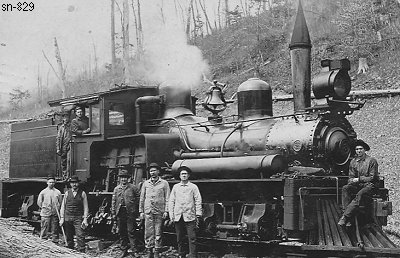

Photo Credit:
Left: by unknown
Right: Charlie Barnes collection
Shop Number 829 - Built for: Lowell M. Palmer
{771st Lima Built Shay}
Built:
12-5-1903
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,316 Lbs.
 Factor of
Adhesion:
4.84
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
77,800
Owners:
Lowell M. Palmer #3 "BUTLER COUNTY", Poplar Bluff, MO
Pennsylvania Stave Co., Oleona RR #3, Cross Fork, PA
(1912) Brooklyn Cooperage Co. #8, Poplar Bluff, MO
(12-15-1926) Brooklyn Cooperage Co. #8 (2nd), Georgetown, SC
Brooklyn Cooperage Co. #8, Sumter, SC
Disposition: Scrapped
Additional Notes:
