Lima Locomotive & Machine Co.

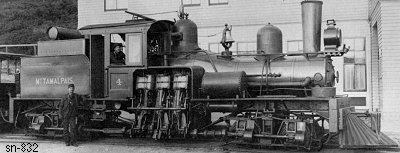

Photo Credit:
by Al Baker
Shop Number 832 - Built for: Mill Valley & Mt. Tamalpais Scenic RY
{774th Lima Built Shay}
Built:
8-5-1903
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.259
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
18,290 Lbs.
 Factor of
Adhesion:
4.47
Maximum
Safe Speed:
13.2
Fuel Type:
Oil
Fuel Capacity:
600 Gals.
Water Capacity:
1,500 Gallons
Empty Weight:
As built
67,400
Owners:
Mill Valley & Mt. Tamalpais Scenic RY #4 "MT. TAMALPAIS", Mill Valley, CA
(1913) Mt. Tamalpais & Muir Woods RY #4, Mill Valley, CA
(11-7-1930) United Commercial Co. (D), San Francisco, CA *
Disposition: (1931) Scrapped
Additional Notes: * Owned by Dealer
