Lima Locomotive & Machine Co.

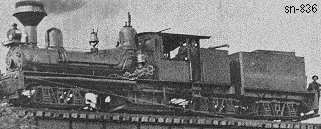

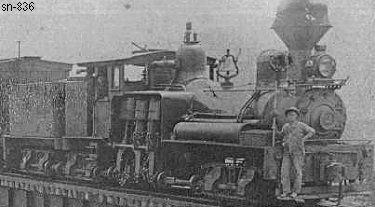

Photo Credit:
Both: George R. Kadelak collection
Shop Number 836 - Built for: West Virginia Pulp & Paper Co
{778th Lima Built Shay}
Built:
3-10-1904
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
30,222 Lbs.
 Factor of
Adhesion:
4.47
 Maximum
Safe Speed:
14.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
105,000
Owners:
West Virginia Pulp & Paper Co., #2 (2nd), Cass, WV
(8-9-1905) West Virginia Pulp & Paper Co., Greenbrier and Elk River RR, #2, Cass, WV
(9-29-1910) West Virginia Pulp & Paper Co., Greenbrier, Cheat & Elk RR, #2, Cass, WV
(10-1928) West Virginia Pulp & Paper Co. #2, Cass, WV
Disposition: (1930's) Scrapped
Additional Notes: West Virginia Spruce Lumber Co. was the parent company of West Virginia Pulp & Paper Co.
