Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection (BP 11-1903)

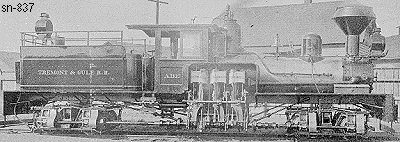

Shop Number 837 - Built for: Tremont Lbr. Co.
{779th Lima Built Shay}
Built:
11-12-1903
 Class:
B
33-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,826 Lbs.
 Factor of
Adhesion:
5.34
Maximum
Safe Speed:
16.3
Fuel Type:
Wood & Coal
 Fuel Capacity:
2 Cords / 3.75 Tons
 Water Capacity:
2,000 Gallons
Empty Weight:
As built
62,100
Owners:
Tremont Lbr Co., Tremont & Gulf RR #12 "ABE", Tremont, LA
(4-1-1908) Tremont Lbr Co., Tremont & Gulf RY #12 "ABE", Tremont, LA
Houlton Lumber Co., Houltonville, LA
Southern Iron & Equip. Co.(D) #1056, Atlanta, GA
(4-5-1916) Brown Lbr Co., Hiwannee & Tombigbee RR #12, Hiwannee, MS
Kola Lumber Co. #837, Kola, MS
(2-15-1924) Elton Lbr Co. #12, Belpine, MS
(6-8-1926) For sale
Southern Iron & Equip. Co.(D) #2136, Atlanta, GA
Disposition: (1927) Scrapped
Additional Notes: Elton Lbr Co traded in to Southern Iron & Equipment Co. on sn-2447
