Lima Locomotive & Machine Co.

Photo Credit:
by Cecil Wayrick

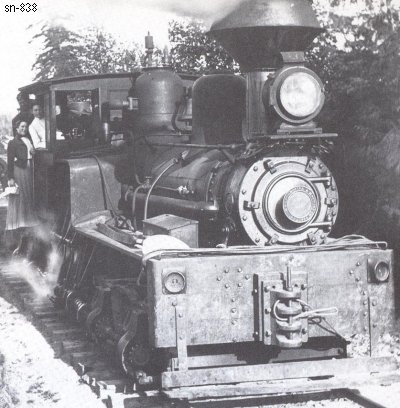

Shop Number 838 - Built for: Stimson Mill Co.
{780th Lima Built Shay}
Built:
2-12-1904
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
16,015 Lbs.
 Factor of
Adhesion:
3.65
 Maximum
Safe Speed:
10.3
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,000 Gallons
Empty Weight:
As built
46,900
Owners:
W. D. Hofius & Co. (D), Seattle, WA
Stimson Mill Co. Marysville & Northern RY, Bryant, WA
Ballard Lbr Co., Bay View, WA
Auburn Lbr Co., Auburn, WA
(5-16-1922) South Tacoma Mill Co., South Tacoma, WA
Anderson, Twedt & Co., Mineral, WA
Disposition: (3-27-1926) Wrecked and scrapped
Additional Notes:
