Lima Locomotive & Machine Co.

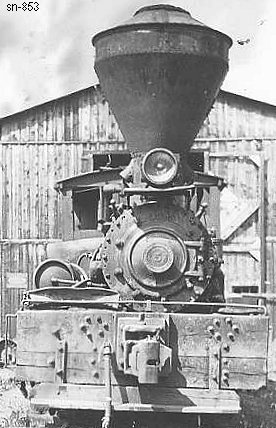

Photo Credit:
Martin E. Hansen collection
Shop Number 853 - Built for: Condon-Lane Boom & Lbr. Co.
795th Lima Built Shay}
Built:
2-20-1904
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
21,948 Lbs.
Factor of
Adhesion:

3.60
Maximum
Safe Speed:

13.2
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
63,000
Owners:
Condon-Lane Boom & Lbr. Co. #6, Hendricks. WV
(1909) Parsons Pulp & Lbr. Co. #6, Horton, WV
Whitmer Parsons Pulp & Lbr. Co., Appalachian RY #5, Ravensford, NC
(9-7-1921) Suncrest Lbr. Co. #5, Sunburst, NC
(4-15-26) Suncrest Lbr. Co. #5, Waynesville, NC
Disposition: (6-1933) Scrapped
Additional Notes: (4-15-26) Suncrest Lbr Co. Offices & P. O changed to Waynesville, N. C.
