Lima Locomotive & Machine Co.

Photo Credit:
Clark Kinsey photo, Martin E. Hansen Collection

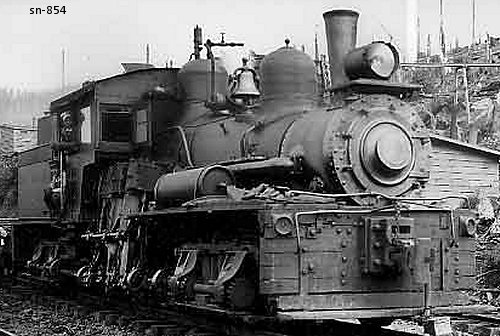

Shop Number 854 - Built for: Deep River Log. Co.
{796th Lima Built Shay}
Built:
10-31-1903
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,316 Lbs.
 Factor of
Adhesion:
4.80
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood & Coal
 Fuel Capacity:
2 Cords / 3.25 Tons
 Water Capacity:
1,750 Gallons
Empty Weight:
As built
77,000
Owners:
W. D. Hofius & Co. (D), Seattle, WA
Deep River Log. Co. #3, Deep River, WA
Onalaska Lbr Co. #3, Onalaska, WA
(8-1915) C. H. Wheeler Lbr. Co., Cochran, OR
(9-2-1920) Francis Weist & Co. (contractor), Reliance, OR
(1-21-1921) C. H. Wheeler Lbr Co., Cochran, OR
(10-24-1924) Blue Lake Log. Co., Cochran, OR
Disposition: (11-28-1928) Scrapped
Additional Notes: ??Owner: S. E. Slade Log. Co., Aberdeen, WA
