Lima Locomotive & Machine Co.

Photo Credit:
Fred C. Hirzel collection at Missaukee County Museum

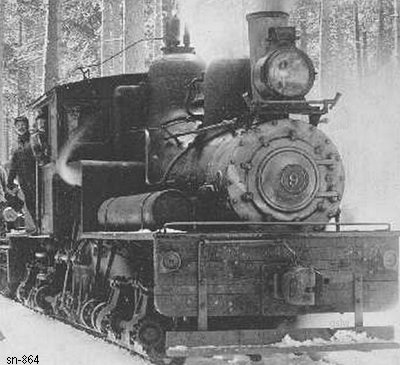

Shop Number 864 - Built for: Thayer Lbr. Co.
{806th Lima Built Shay}
Built:
7-2-1904
Class:
B
33-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,072 Lbs.
 Factor of
Adhesion:
5.52
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
63,400
Owners:
Thayer Lbr. Co. #9, Muskegon [Halsted], MI
(2-20-1919) Gennessee Lbr. Co. #9, Genesee, LA
(1-19-1921) Williams Yellow Pine Co. #2, Wilco, MS
Disposition: Scrapped
Additional Notes:
