Lima Locomotive & Machine Co.

Photo Credit:
Steve Hauff collection

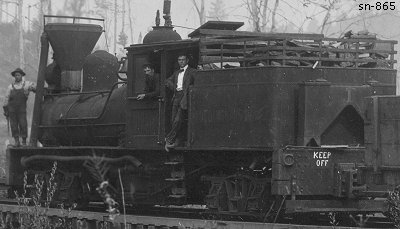

Shop Number 865 - Built for: The Seattle Lbr. Co.
{807th Lima Built Shay}
Built:
8-4-1904
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.80
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
65,000
Owners:
W. D. Hofius & Co. (D), Seattle, WA
The Seattle Lbr. Co. #2, Bremerton, WA
(5-27-1920) Luedinghaus Lbr. Co. #2 (4th), Dryad, WA
(11-17-1928) Schafer Brothers Log. Co. #2 (4th), Dryad, WA
Schafer Brothers Log. Co. #2 (4th), Satsop, WA
Disposition: Scrapped
Additional Notes:
Updated: 4-16-2013
