Lima Locomotive & Machine Co.

Photo Credit:

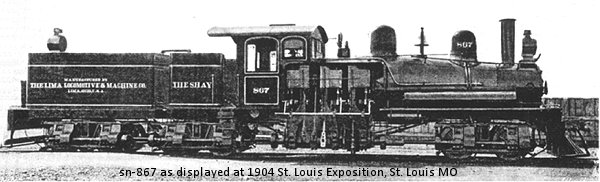

Top: George R. Kadelak collection (1904)
Left: Marc Reusser collection (c1939)
Shop Number 867 - Built for: Lima Locomotive & Machine Co.
{809th Lima Built Shay}
Built:
by 3-1904
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
29,849 Lbs.
 Factor of
Adhesion:
4.80
 Maximum
Safe Speed:
19.4
Fuel Type:
Coal & Oil
 Fuel Capacity:
5 tons/1,180 gal
Water Capacity:
3,000 Gallons
Empty Weight:
As built
113,000
Owners:
(by 3-1904) Lima Locomotive & Machine Co. #867, Lima OH as demonstrator *
(4-1 thru 12-1 1904) Displayed at 1904 St. Louis Exposition, St. Louis MO
(12-24-1904) Charles Erickson (contractor) #2, Ione, CA For:
Ione & Eastern RY, Ione, CA
(1-1-1909) Amador Central RR #2, Martell, CA
(1912) Metropolitan Redwood Lbr. Co. #2, Metropolitan, CA
Disposition: (c1939) Scrapped
Additional Notes: * Owned by Dealer
