Lima Locomotive & Machine Co.
Photo Credit:

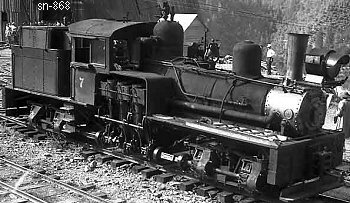

Left: by Russ Ahrnke
Right: Martin E. Hansen collection
Shop Number 868 - Built for: El Dorado Lbr. Co.
{810th Lima Built Shay}
Built:
3-8-1904
Class:
B
33-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
36"
Boiler:
[Style - Dia.]

W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
14,826 Lbs.
Factor of
Adhesion:

4.23
Maximum
Safe Speed:

16.3
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
50,000
Owners:
El Dorado Lbr. Co. #7, Camino, CA
(1911) C. D. Danaher Pine Co. #7, Camino, CA
(1915) R. E. Danaher Co. #7, Camino, CA
(1917) Michigan-California Lbr. Co. #7, Camino, CA
Disposition: (1951) Scrapped
Additional Notes:
