Lima Locomotive & Machine Co.

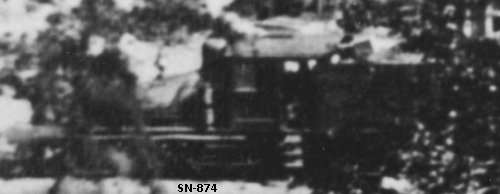

Photo Credit:
Philip Griffith collection *
Shop Number 874 - Built for: Stearns Coal & Lbr. Co.
{816th Lima Built Shay}
Built:
5-19-1904
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.04
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
69,000
Owners:
Stearns Coal & Lbr. Co., Kentucky & Tennessee RY #2, Stearns, KY
Jerseyfield Lbr. Co. #6, Salisbury Center, NY
Emporium Forestry Co. #6, Conifer, NY
Disposition: Scrapped
Additional Notes: *The photo in Logging RR of Adironacks pg-239 shown as Jerseyfield Lbr. Co. #6, is sn-931
