Lima Locomotive & Machine Co.

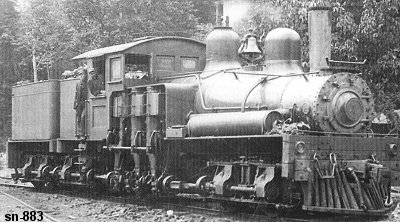

Photo Credit:
Gary P. Price collection

Shop Number 883	-	Built for: Grayson Lbr. Co.
{825th Lima Built Shay}

Built: 6-1-1904	Class: C 65-3	Trucks: 3	Cylinders: [#-Dia. x Stroke] 3 - 12 x 15
Gear Ratio: 2.211	Wheel Dia.: 36"	Gauge: std.	Boiler: [Style - Dia.] E.W.T. - 46"
Boiler Pressure: In Lbs. (PSI) 200	Tractive Effort: 29,849 Lbs.	Factor of Adhesion: 4.72	Maximum Safe Speed: 19.4
Fuel Type: Coal	Fuel Capacity: 5 Tons	Water Capacity: 3,000 Gallons	Empty Weight: As built 109,800
Owners: Grayson Lbr. Co., Virginia Southern RR #1, Marion, VA Fairwood Lbr. Co. #1, Fairwood, VA (2-1911) United States Spruce Lbr. Co., Marion & Rye Valley RR #1 (2nd), Fairwood, VA (2-20-1920) Woodson Lbr. Co. #1 (1st), Woodson, VA Birch Valley Lbr. Co., Strouds Creek & Muddlety RR, Tioga, WV (1-20-1921) Eakin Lbr. Co., The Erbacon & Summersville RR Co, Erbacon, WV (10-9-1928) Eakin Lbr. Co. #1, Fenwick, WV Ely-Thomas Lbr. Co. #1, Fenwick , WV
Disposition: (2-1941) Scrapped by
Additional Notes:
