Lima Locomotive & Machine Co.

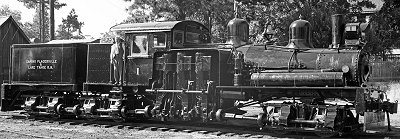

Photo Credit:
by Philip C. Johnson
from Archives and Special Collections at Mansfield Library, University of Montana
Shop Number 885 - Built for: El Dorado Lbr. Co.
{827th Lima Built Shay}
Built:
6-20-1904
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
29,835 Lbs.
 Factor of
Adhesion:
4.76
 Maximum
Safe Speed:
19.4
Fuel Type:
Coal & Oil
 Fuel Capacity:
5 Tons/1,180 Gallons
 Water Capacity:
3,000 Gallons
Empty Weight:
As built
111,703
Owners:
El Dorado Lbr. Co. #8, Camino, CA
Placerville & Lake Tahoe RY #1, Placerville, CA
(1-1912) Camino, Placerville & Lake Tahoe RR #1, Camino, CA
Disposition: (1955) Scrapped
Additional Notes:
