Lima Machine Works

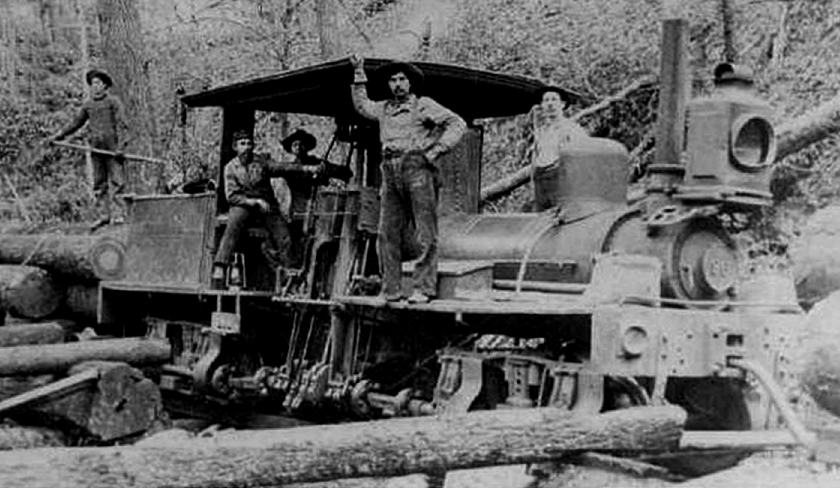

Photo Credit:
Tom Dunne Collection
Shop Number 89 - Built for: Gregory-Coe Lbr. Co..
{63rd Lima Built Shay}
Built:
10-2-1883
Class:
A
11-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8x8
Gear Ratio:
3.071
 Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
Boot.- 44"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
4,542 Lbs.
 Factor of
Adhesion:
4.56
 Maximum
Safe Speed:
10.1
Fuel Type:
Coal
Fuel Capacity:
1 Ton
Water Capacity:
660 Gallons
Empty Weight:
As built
14,000
Owners:
Gregory-Coe Lbr. Co. #89, Stanton, AL
Lima Locomotive & Machine Co., Lima OH; rebuilt, resold *
(6-17-1902) Smith Bros., Stanton, AL
Peytonia Lbr. Co., Peytona, WV
(7-15-1920) Glen Loco. Works (D), Covington, KY *
Disposition: Scrapped
Additional Notes: * Owned by Dealer
