Lima Locomotive & Machine Co.

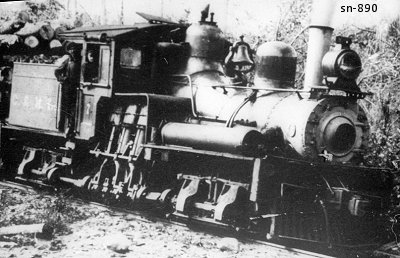

Photo Credit:
Charlie Conn collection
Shop Number 890 - Built for: Cobbs & Mitchell, Inc.
{832nd Lima Built Shay}
Built:
9-7-1904
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.76
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
76,100
Owners:
Cobbs & Mitchell, Inc., Boyne Falls & Northeastern RR #7, Boyne Falls, MI
(9-16-1924) For sale
(7-16-1926) Slater Construction Co. #7, New Hudson, MI
(1-10-1934) Standard Gravel Co. #7, Pontiac, MI
Disposition: Scrapped
Additional Notes:
